Brokk 900 Pedestal Boom
Like all Brokk robots, the Brokk Pedestal Boom excels in offering great flexibility for underground and confined spaces.
* Machine weight: Excluding attachment and extra equipment
** Power: Valid for 400V/50Hz and 440V/60Hz
*** Estimated production rate with breaker in normal strength rebar reinforced concrete (approx)
Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications

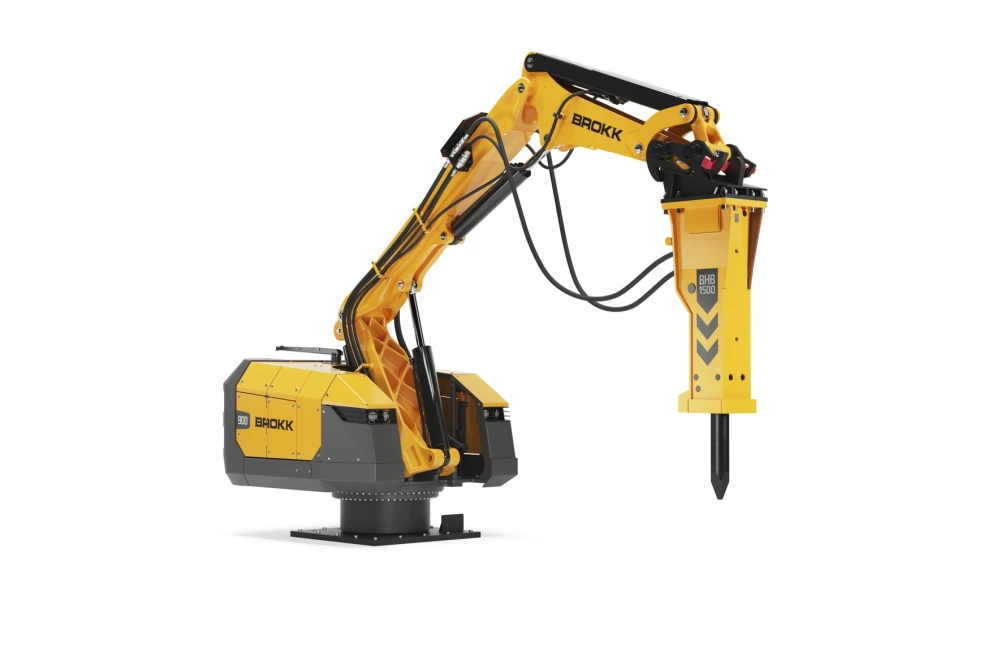

The Brokk 900 Pedestal Boom brings the power and precision of Brokk demolition robots to primary breaking applications, particularly at gyratory crushers and grizzlies. Mounted on a pedestal, this machine combines the advantages of a Brokk robot with a stationary setup, offering exceptional strength and reach. The Brokk 900 Pedestal Boom allows for easy attachment changes and remote maneuvering with video and audio feedback, making it the perfect plug-and-play solution for heavy-duty rock breaking.
Advantages of Brokk 900 Pedestal Boom
- Small footprint
- 360 degrees slewing
- Perfect for spaces with low headroom
- Plug-and-play solution
Technical Specifications
Expand All| Hydraulic breaker in illustrations. <br>Load and stability diagram available on request. | BHB 1500 |
|---|
Specifikationer
| Slewing speed | 16 sec/360° |
|---|---|
| Hydraulic system capacity | 230 l; 60.8 US gal |
| Pump type | Variable load-sensing |
| System pressure | 18.5 MPa; 2683 psi |
| Increased pressure to attachment | 25 MPa; 3626 psi |
| Pump flow 50 Hz | 148 l/min; 39 US gal/min |
| Pump flow 60 Hz | 178 l/min; 47 US gal/min |
| Power* | 71 kW |
| Recommended fuse size* | 125 A |
| Machine weight** | 7150 kg; 15,763 lbs |
| Recommended attachment weight | 1500 kg; 3307 lbs |
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment
**Excluding options and attachment
