Brokk 500 Pedestal Boom
Like all Brokk robots, the Brokk Pedestal Boom excels in offering great flexibility for underground and confined spaces.
* Machine weight: Excluding attachment and extra equipment
** Power: Valid for 400V/50Hz and 440V/60Hz
*** Estimated production rate with breaker in normal strength rebar reinforced concrete (approx)
Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications

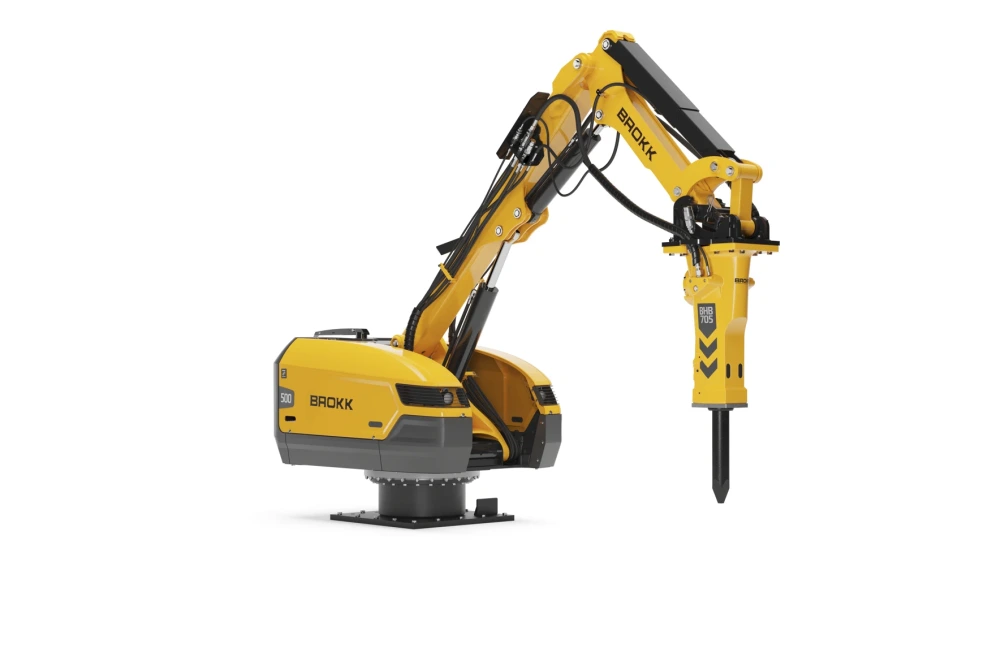

Designed to handle primary breaking at jaw crushers and grizzlies, the Brokk 500 Pedestal Boom features the robust body of a Brokk robot mounted on a stationary pedestal. This setup allows the machine to be positioned close to the work area, providing direct and powerful rock breaking capabilities. With easy attachment changes and the convenience of remote operation using video and audio feedback, the Brokk 500 Pedestal Boom is the ultimate plug-and-play solution for demanding rock breaking tasks.
Advantages of Brokk 500 Pedestal Boom
- Small footprint
- 360 degrees slewing
- Perfect for spaces with low headroom
- Plug-and-play solution
Technical Specifications
Expand All| Hydraulic breaker in illustrations. <br>Load and stability diagram available on request. | BHB 705 |
|---|
Specifikationer
| Slewing speed | 16 sec/360° |
|---|---|
| Hydraulic system capacity | 145 l; 38 US gal |
| Pump type | Variable load-sensing |
| System pressure | 18 MPa; 2611 psi |
| Increased pressure to attachment | 24 MPa; 3481 psi |
| Pump flow 50 Hz | 115 l/min; 30 US gal/min |
| Pump flow 60 Hz | 130 l/min; 34 US gal/min |
| Power* | 41 kW |
| Recommended fuse size* | 63 A |
| Machine weight** | 3588 kg; 7910 lbs |
| Recommended attachment weight | 700 kg; 1543 lbs |
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment
**Excluding options and attachment
