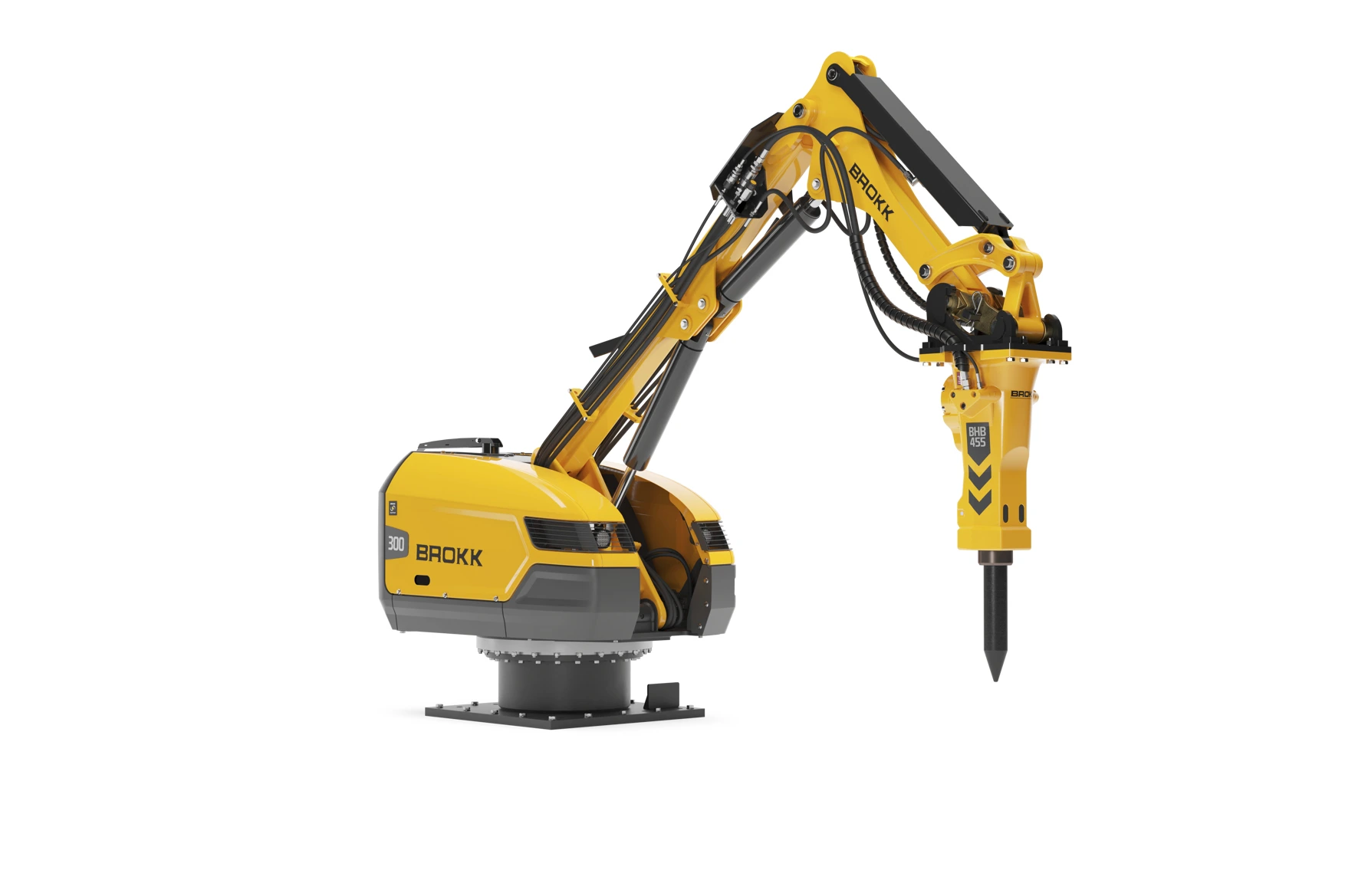

Brokk 300 Pedestal Boom
Like all Brokk robots, the Brokk Pedestal Boom excels in offering great flexibility for underground and confined spaces.
* Machine weight: Excluding attachment and extra equipment
** Power: Valid for 400V/50Hz and 440V/60Hz
*** Estimated production rate with breaker in normal strength rebar reinforced concrete (approx)
Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications
The Brokk 300 Pedestal Boom is perfectly adapted for primary breaking tasks at mobile crushers, jaw crushers, and grizzlies. Its flexible design makes it ideal for underground and confined space applications. Equipped with options for easy attachment changes and remote maneuvering, complete with video and audio feedback, the Brokk 300 Pedestal Boom delivers unparalleled versatility and efficiency, making it an essential tool for rock breaking at crushers and grizzlies.
Advantages of Brokk 300 Pedestal Boom
- Small footprint
- 360 degrees slewing
- Perfect for spaces with low headroom
- Plug-and-play solution
Technical Specifications
Expand All| Hydraulic breaker in illustrations. <br>Load and stability diagram available on request. | BHB 455 |
|---|
Specifikationer
| Slewing speed | 16 sec/360° |
|---|---|
| Hydraulic system capacity | 95 l; 25 US gal |
| Pump type | Variable load-sensing |
| System pressure | 17 MPa; 2466 psi |
| Increased pressure to attachment | 23 MPa; 3336 psi |
| Pump flow 50 Hz | 100 l/min; 26 US gal/min |
| Pump flow 60 Hz | 120 l/min; 32 US gal/min |
| Power* | 37 kW |
| Recommended fuse size* | 63 A |
| Machine weight** | 2615 kg; 5765 lbs |
| Recommended attachment weight | 500 kg; 1102 lbs |
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment
**Excluding options and attachment
