Brokk 170⁺

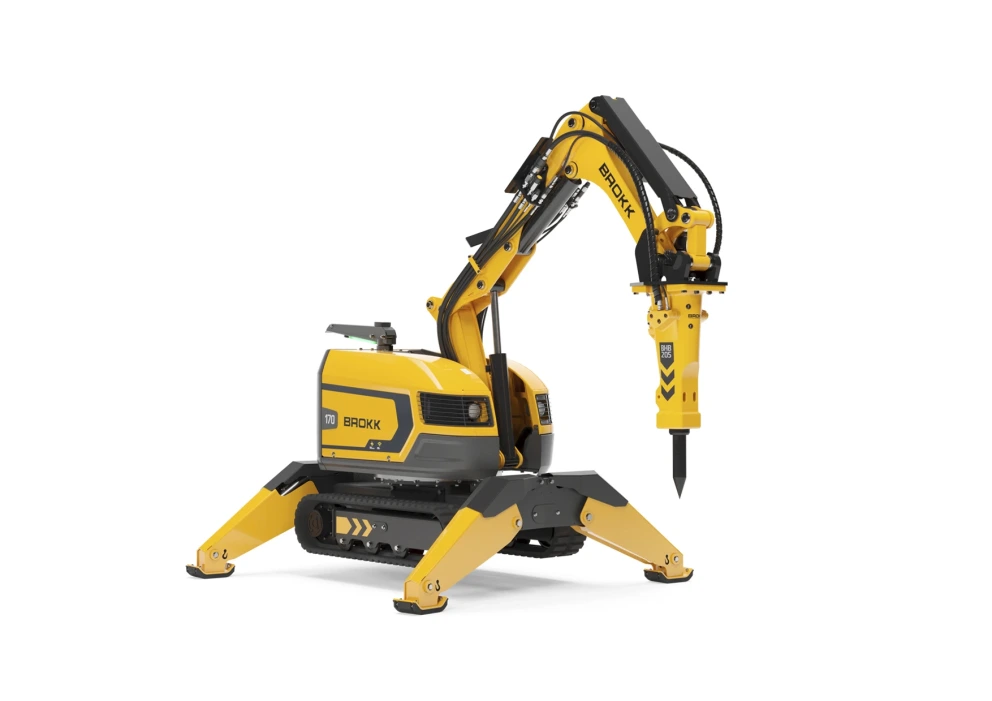

Meet the new generation Brokk 170⁺, the ultimate demolition robot tailor-made for the construction industry

Weight^* 1600 kg; 3527 lbs

Power^** 24 kW

Productivity^*** 3,8 m³/h

* Machine weight: Excluding attachment and extra equipment

** Power: Valid for 400V/50Hz and 440V/60Hz

*** Estimated production rate with breaker in normal strength rebar reinforced concrete (approx)

Download Product Sheet

This lightweight game-changer packs a punch

Despite its unassuming size, this lightweight game-changer packs a punch, boasting a robust breaker and a remarkably powerful — yet nearly silent— concrete crusher. Its compact design allows the Brokk 170⁺ to effortlessly navigate through standard doorways, while its innovative Brokk SmartPower+ electrical system delivers unparalleled power and proven reliability.

Product Features

Big size grease container, Brokk QuickSwitch, Brokk SmartPower+, Daily maintenance - hoods on, Ergonomic control box, Visual status communication system

See related Attachments

Advantages of Brokk 170⁺

Increase in uptime and more power over time
Smart sensors and a sophisticated Brokk operator support system
Ergonomically designed control box weighing less than 3kg and tilted joysticks
Equipped with a 24 kW Brokk SmartPower+ electrical system
Operates on a 32 A fuse for efficiency
Lightweight and powerful

Contact for more info

Technical Specifications

Expand All

Hydraulic breaker in illustrations. <br>Load and stability diagram available on request.	BHB 205

Slewing speed	10 sec/360°
Transport speed, max.	2.1 km/h; 1.3 mph
Climbing inclination, max.	30°

Hydraulic system capacity	85 l; 22.5 US gal
Pump type	Variable load-sensing
System pressure	18 MPa; 2611 psi
Increased pressure to attachment	23 MPa; 3336 psi
Pump flow 50Hz	69 l/min; 18 US gal/min
Pump flow 60Hz	83 l/min; 21 US gal/min

Power technology	SmartPower+
Electric motor type	ABB
Power*	24 kW
Recommended fuse size*	63 A
Starting device	Soft start/Direct start

Control unit	Portable
Signal code	Digital
Transfer	Professional radio/Cable
Range, radio	Up to 300 m

Machine weight**	1600 kg; 3527 lbs
Recommended attachment weight	270 kg; 595 lbs

Sound power level L<sub>WA</sub>***	87 dB(A)

Width min	780 mm; 30.7 in
Height min	1254 mm; 49.4 in
V reach incl breaker	4800 mm; 189 in
H reach incl breaker	4400 mm; 173 in

*Valid for 400V/50Hz and och 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment
