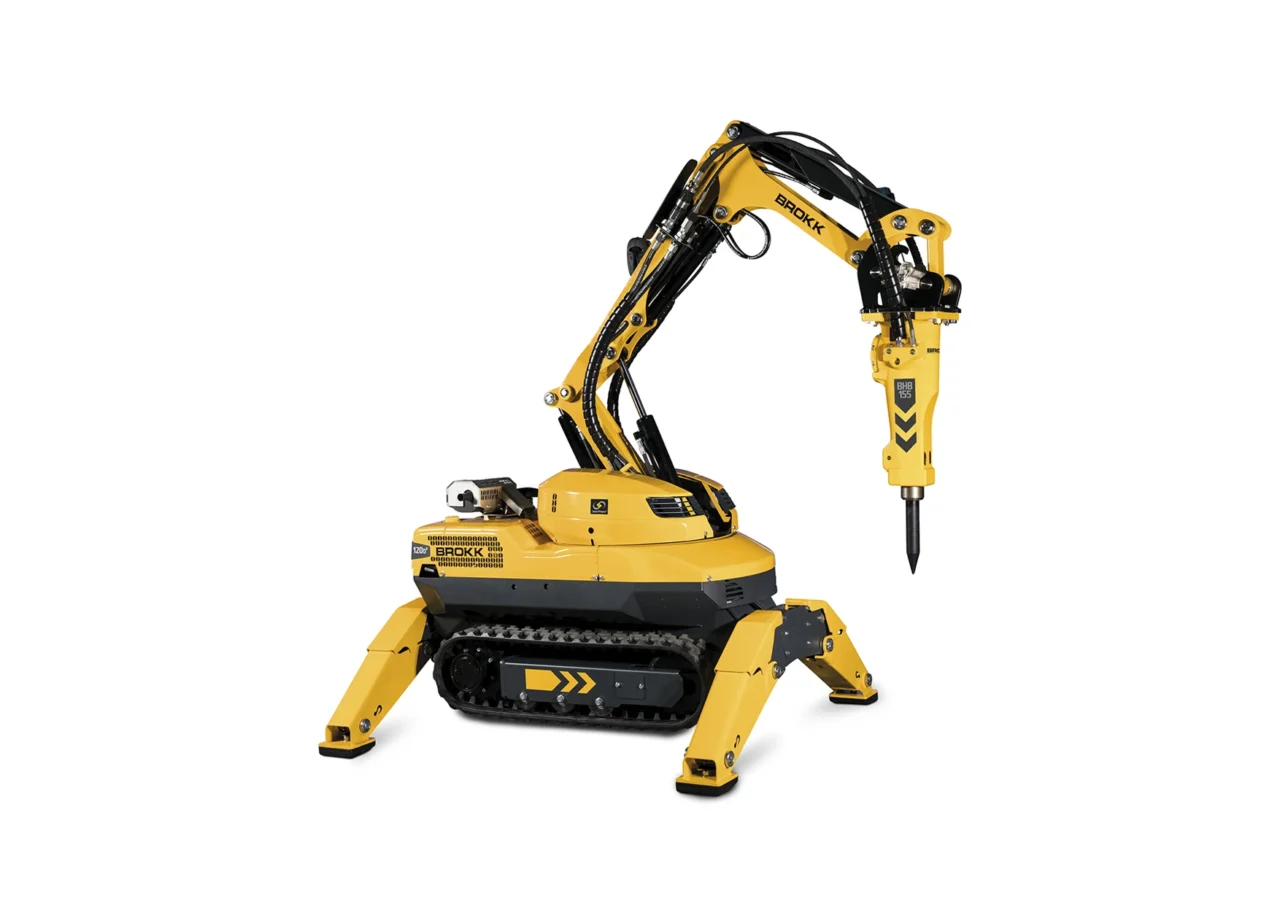

Brokk 120DII

The world’s smallest diesel-powered demolition robot, delivering outstanding power in tight spaces.

Weight 1230 kg; 2712 lbs
Reach Up to 300 m
Productivity —

The world’s smallest diesel-driven demolition robot. Outstanding power in tight spaces.

The Brokk 120DII stands out as the world’s smallest diesel-powered demolition robot, capable of passing through a standard doorway and operating in confined spaces. Fully wireless, it can run for at least eight hours without needing a fuel refill. With Brokk SmartPower™, the Brokk 120DII offers reliability comparable to its electric counterparts, making it the epitome of diesel-powered excellence.

See related Attachments

Advantages of Brokk 120DII

  • The world's smallest diesel-driven demolition robot
  • Ideal for places that do not have reliable power supply
  • Compatible with attachments for Brokk 110
  • High tracking speed for high mobility

Related Attachments

Tagline

Options & Items

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.

Technical Specifications

Hydraulic breaker in illustrations. <br>Load and stability diagram available on request. BHB 155
Performance
Slewing speed 10 sec/360°
Transport speed, max. 3 km/h; 1.9 mph
Climbing inclination, max. 30°
Hydraulic system
Hydraulic system capacity 45 l; 12 US gal
Pump type Gear pump with fixed displacement
System pressure* 18 MPa; 2611 psi
Pump flow 50 l/min; 13 US gal/min
Diesel performance
Type Three-cylinder, water-cooled, 4-stroke engine
Engine 18.5 kW; 24.8 hp diesel EPA Tier 4
Fuel tank capacity 30 l; 7.9 US gal
Engine oil volume 5.1 l; 1.35 US gal
Coolant volume 4.4 l; 1.2 US gal
Freezing point -40ºC; -40ºF
Control system
Control type SmartRemote™, portable
Signal code Digital
Transfer Professional radio/Cable
Range, radio Up to 300 m
Weight
Machine weight** 1230 kg; 2712 lbs
Recommended attachment weight 160 kg; 353 lbs
Noise level
Sound power level L<sub>WA</sub>*** 101 dB(A)
Specifikationer
Pump flow 50hz 50 l/min; 13.3 gal/min
Power 18.5 D
Width min 780 mm; 30.7 in
Height min 1250 mm; 49.2 in
V reach incl breaker 4300 mm; 169 in
H reach incl breaker 3700 mm; 146 in
*Hydraulic pressure can be increased depending on the attachment
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment
