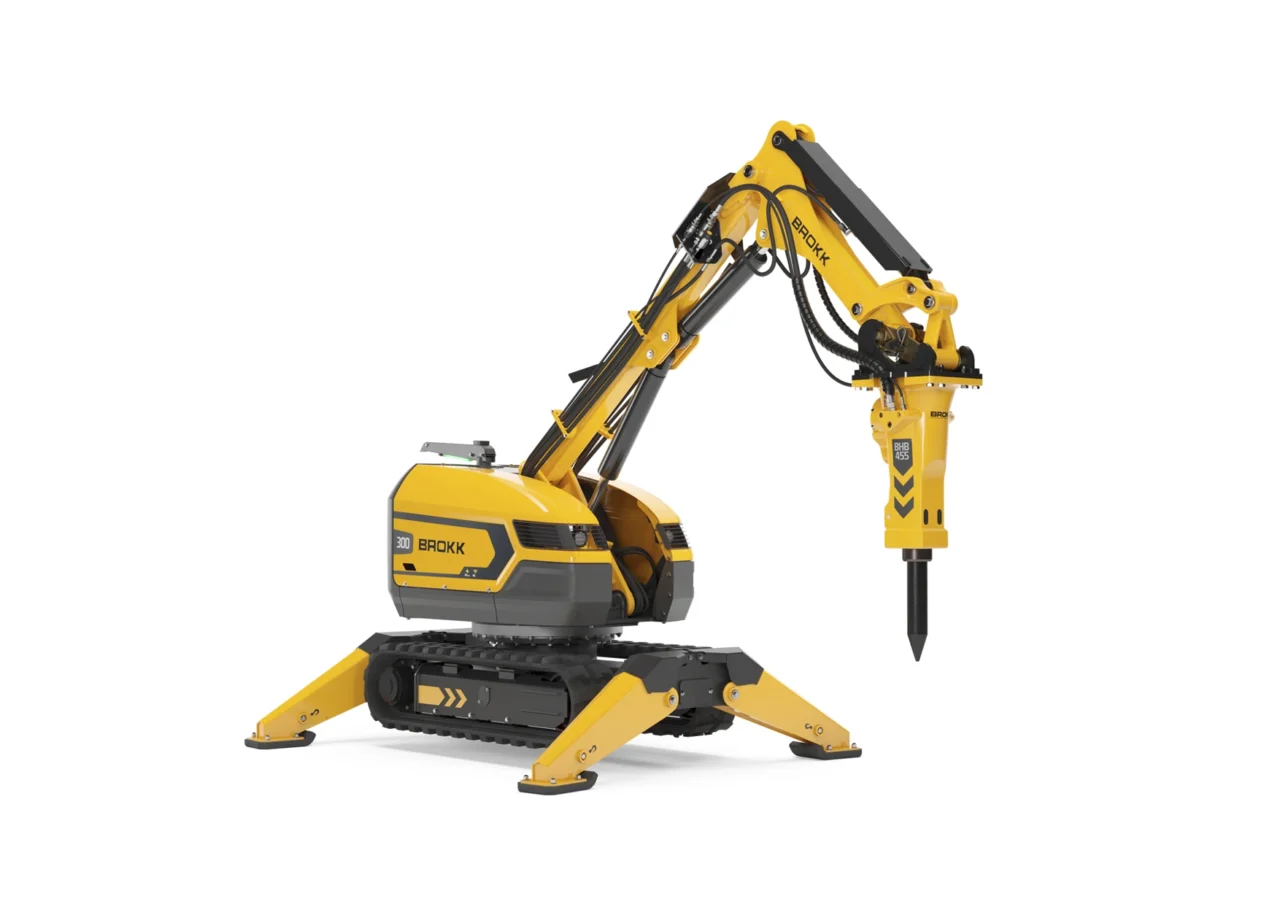

Brokk 300

The impressive evolution of demolition robot strength: a new standard in power-to-weight balance.

Weight 3650 kg; 8047 lbs
Reach Up to 300 m
Productivity —

The impressive evolution of strength: A whole new power-to-weight equilibrium.

The Brokk 300 exemplifies the rapid advancements in Brokk demolition robots. Powered by Brokk SmartPower™, this model delivers 40% more hitting power than the Brokk 280 and can support heavier attachments. With its superior strength, reach, and stability, the Brokk 300 is set to become a legend in power and performance.

See related Attachments

Advantages of Brokk 300

  • Outstanding 6 meter reach
  • 37 kW Brokk SmartPower™ electrical system
  • Heavier and more powerful attachments
  • Compatible with attachments for Brokk 280

Related Attachments

Tagline

Options & Items

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.

Technical Specifications

Hydraulic breaker in illustrations. <br>Load and stability diagram available on request. BHB 455
Performance
Slewing speed 16 sec/360°
Transport speed, max. 2.7 km/h; 1.7 mph
Climbing inclination, max. 30°
Hydraulic system
Hydraulic system capacity 95 l; 25 US gal
Pump type Variable load-sensing
System pressure. 17 MPa; 2466 psi
Increased pressure to attachment 23 MPa; 3336 psi
Pump flow 50Hz 100 l/min; 26 US gal/min
Pump flow 60Hz 120 l/min; 32 US gal/min
Power system
Power technology SmartPower™
Electric motor type ABB
Power* 37 kW
Recommended fuse size* 63 A
Starting device Soft start/Direct start
Control system
Control type SmartRemote™, portable
Signal code Digital
Transfer Professional radio/Cable
Range, radio Up to 300 m
Weight
Machine weight** 3650 kg; 8047 lbs
Recommended attachment weight 500 kg; 1102 lbs
Noise level
Sound power level L<sub>WA</sub>*** 95 dB(A)
Specifikationer
Width min 1200 mm; 47.2 in
Height min 1530 mm; 60.2 in
V reach incl breaker 6500 mm; 256 in
H reach incl breaker 6100 mm; 240 in
*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment
